Firewall Ports
Firewall Ports To Open
Tosca Administration Console
| Port Number | Direction |
|---|---|
| 80 | Outbound |
| 80 | Inbound |
| 443 | Outbound |
| 443 | Inbound |
| 5005 | Inbound |
| 5002 | Inbound |
| 5003 | Inbound |
| 5000 | Inbound |
Open Ports With Windows

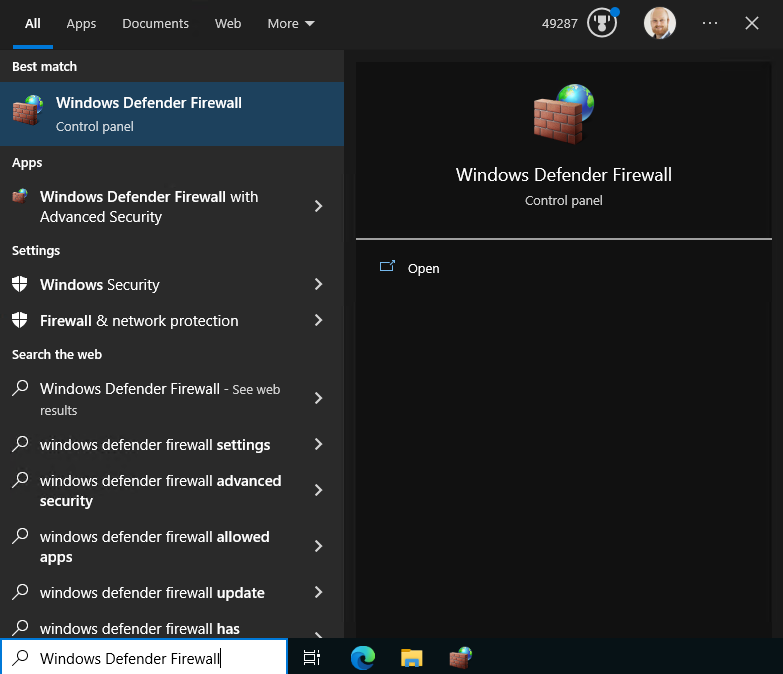

Search For the Windws Defender Firewall and select it from the menu

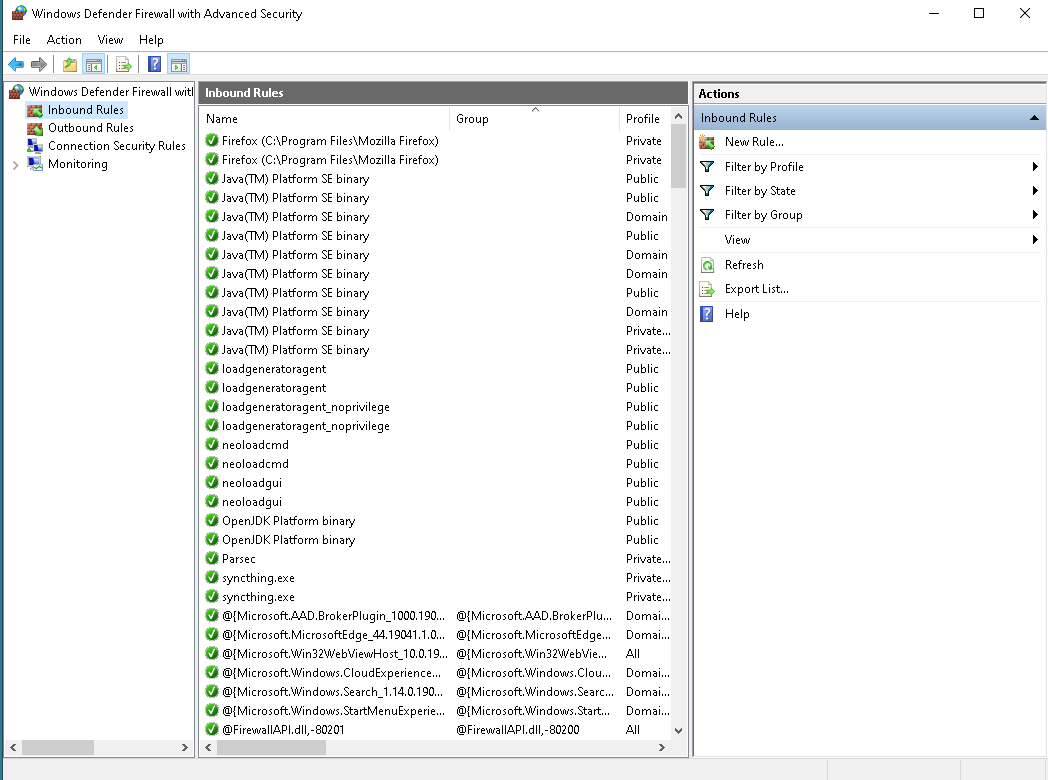

Next you will want to follow these steps for all ports. Start by clicking on the Inbound Rules item. Click on the New Rule item from the Actions tab on the right of the window

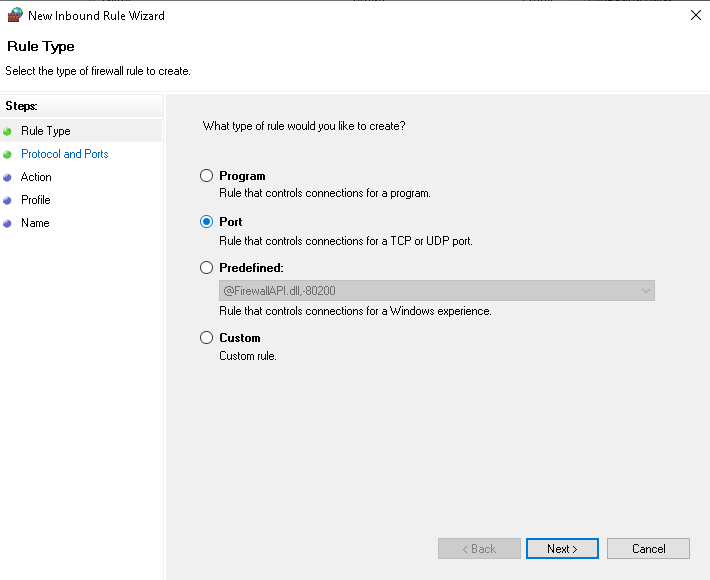

Select the rule type of Port as we will want to open TCP Ports to this machine for the network

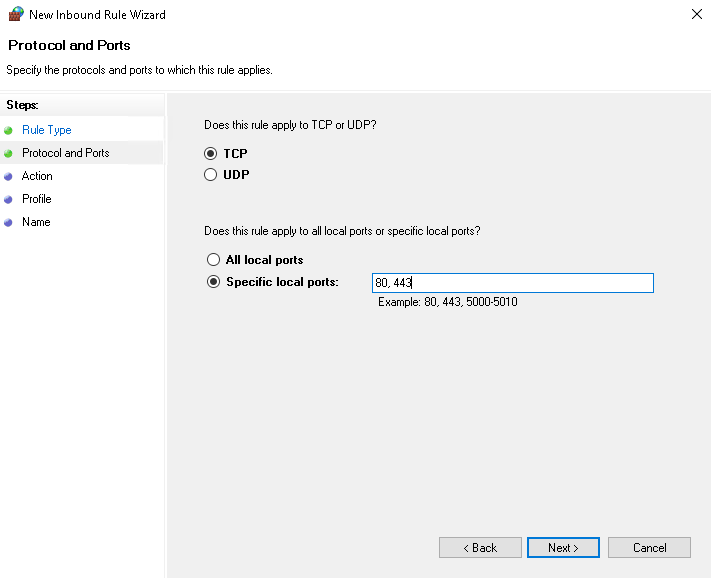

In Bound HTTP/HTTPS - Here we will want the specific ports to match, I created two inbound rules,
Firstly for Web Access (80, 443) - inbound Secondly for Services Access(5000, 5002, 5003, 5005) - inbound

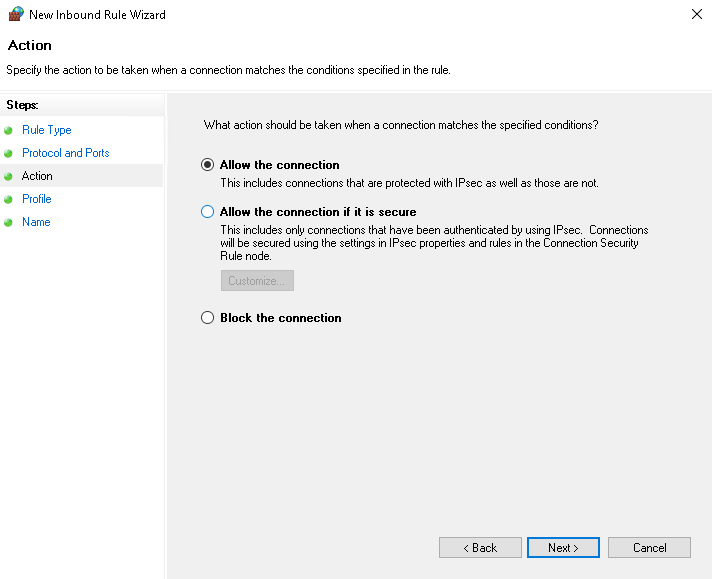

Allow the connection if not already selected. This permits the ports to be opened on the machine

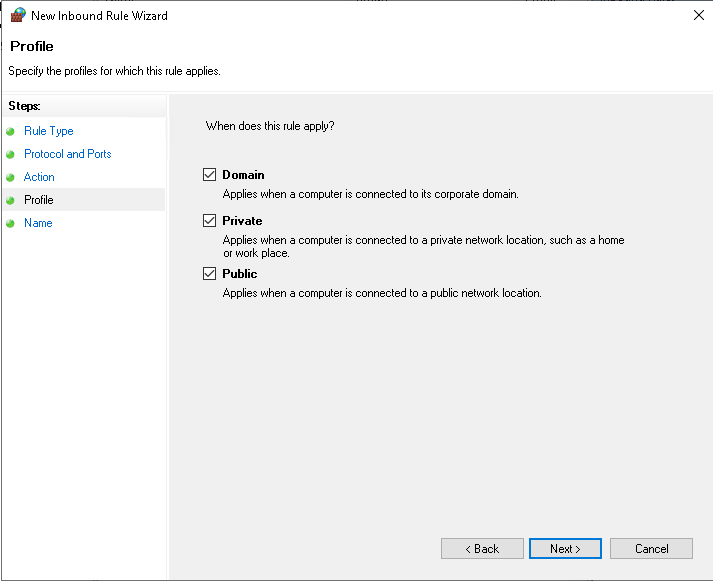

Select the rule apply on, I have selected all as I am running from a local personal network
Give the rule a name.
80,443 - inbound - Tosca Web Access 80,443 - outbound - Tosca External We Access 5000,5002,5003,5005 - inbound - Tosca Services
